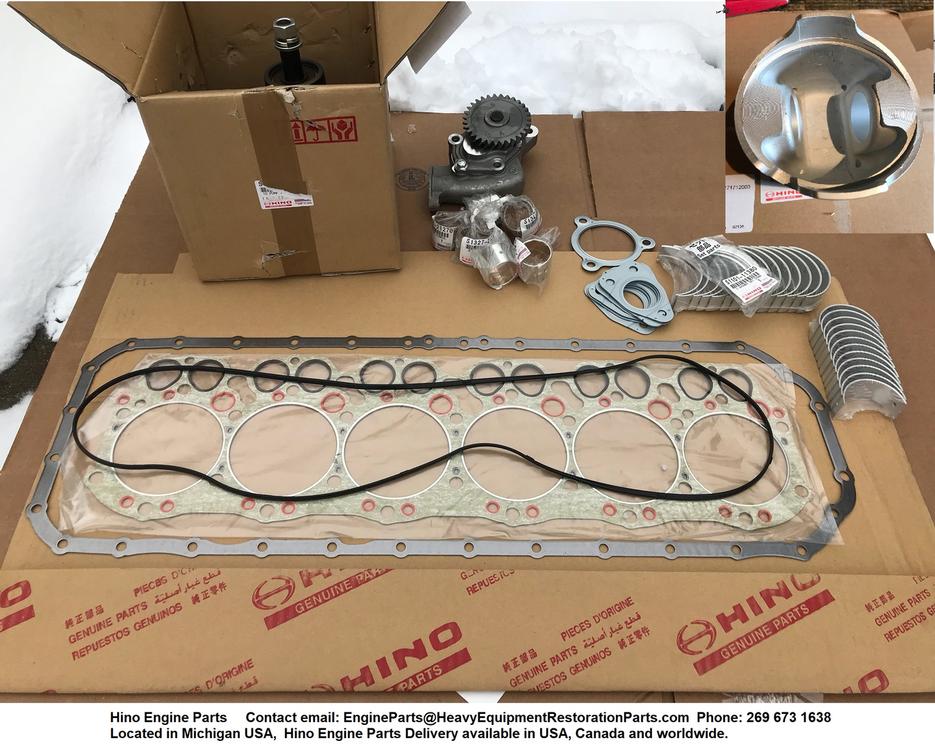

New Hino H06C, H06CT Parts available from a limited stock of inventory.

Hino H06CT Engine Parts
Located in USA, Delivery available in USA, Canada, and worldwide.
Engine Parts for the Hino 6.5 Liter 396 Cubic Inch Diesel Engine
Hino Engine Parts for Heavy Equipment, Excavating Equipment, Forklifts, Trucks, Cranes, Generators, Power Units, and Marine applications.

Hino H06C H06CT 6.5 Liter 6.485 CC ( 396 Cubic Inches )
Bore: 108MM ( 4.25 Inches )
Stroke 118MM ( 4.65 Inches )
Intake Valve Clearance cold 0.30MM ( 0.0118 Inch )
Exhaust Valve Clearance cold 0.45MM ( 0.0177 Inch )
Compression Test with engine warm  469 to 511 Ft Lbs, Low limit 398 Ft Lbs.
Compression Difference between cylinders less than 43 Ft Lbs
Low Engine Oil Pressure Limit 8 PSI , Oil Pressure Sensor turns on oil pressure warning light at 8.6 PSI
Engine Operating Temperature 203 Degrees Fahrenheit,
    Water Temperature Sensor turns on high temperature warning light at 215 Degrees Fahrenheit
Cylinder Head Height Nominal 95.00MM ( 3.74 Inch )
Cylinder Head Height Limit 94.70MM ( 3.7283 Inch )
Intake Valve Head Outside Diameter  52.000 to 52.019MM ( 2.0472 to 2.0479 Inch )
Exhaust Valve Head Outside Diameter 45.500 to 45.516MM ( 1.7914 to 1.7919 Inch )
Intake Valve Stem Outside Diameter  9.00MM  ( 0.3500 Inch ) ,  Service Limit 8.89MM ( 0.3499 Inch )
Exhaust Valve Stem Outside Diameter  9.00MM ( 0.3500 Inch ) , Service Limit 8.89MM ( 0.3499 Inch )
Clearance Between Intake Valve Stem and Intake Valve Guide 0.055MM to 0.088MM ( 0.0022 to 0.0035 Inch )
Clearance Between Exhaust Valve Stem and Exhaust Valve Guide  0.070MM to 0.103MM ( 0.0028 to 0.0042 Inch )
Intake Valve Head Depth Below Cylinder Head Surface -0.05MM to -0.25MM ( 0.0019 to 0.0098 Inch )
Exhaust Valve Head Depth Below Cylinder Head Surface -0.01MM to -0.21MM ( 0.0003 to 0.0082 Inch )

Hino H06C H06CT Head Bolt Tightening Torque
Tighten the cylinder head bolts in three stages following the tightening order.
        31        29        27        28         30          32
        20        12         4          5          13          21
 24        16          8          1          9           17         25 Engine
 23        15          7          2        10           18         26 Rear
        19         11         3         6           14         22  (flywheel)

Head Bolt Tightening Torque Value
Head Bolts 1 through 26 tighten in three steps 67 Ft Lbs then 100 Ft Lbs then 135 Ft Lbs
Head Bolts 27 through 32 tighten to 51 Ft Lbs


Fuel Injection Mounting Bolt Tightening Torque 10 - 13 Ft Lbs
Valve Cover Tightening Torque 10 - 13 Ft Lbs ( install new valve cover gasket )
Exhaust Manifold Nuts Studs Bolts Tightening Torque 33 - 36 Ft Lbs ( install new exhaust manifold gaskets )
Intake Manifold Nuts Studs Bolts Tightening Torque 14 - 18 Ft Lbs ( install new intake manifold gaskets )
Engine Oil Pump Bolts Tightening Torque 28 - 36 Ft Lbs ( install new oil pump gaskets and seals )
Front Crankshaft Damper Nut Tightening Torque  398 - 506 Ft Lbs
Oil Pan Bolt Tightening Torque 14 - 16 Ft Lbs ( install new oil pan gaskets and seals )
Connecting Rod Bolt Nut Tightening Torque 120 - 133 Ft Lbs
Main Cap Bolt Tightening Torque 115 - 130 Ft Lbs

Piston Pin Outside Diameter  39.989 to 39.000MM ( 1.5350 to 1.5354 Inch )
Clearance Between Piston Pin and Piston Pin Bushing 0.015 to 0.036MM ( 0.0006 to 0.0014 Inch )

Cylinder Liner Inside Diameter 108.00 to 108.10 MM ( 4.2500 to 4.2559 Inch )
Clearance Between Cylinder Liner and Piston  0.192 to 0.224MM ( 0.0076 to 0.0088 Inch )
  Measure the minimum inside diameter of the cylinder liner (bottom end of the liner) and the maximum
  outside diameter of the piston [64.2 mm (2.53 in) away from the bottom end of the piston and
  perpendicular to the pin] with a cylinder gauge and a micrometer, and calculate the clearance from the
  difference of the two. Replace both the piston and the liner if the standard value is exceeded
Nominal Piston Diameter 107.792 to 107.892MM ( 4.2437 to 4.2477 Inch )

Top Piston Ring Thickness  2.656 to  2.806 ( 0.1046 to 0.1105 Inch )
Second Piston Ring Thickness  2.35 to 2.50 MM ( 0.0925 to  0.0980 Inch )
Third Piston Ring Thickness  2.35 to 2.50 MM ( 0.0925 to  0.0980 Inch )
Bottom Oil Piston Ring Thickness  ( Series 1 ) 4.95 to 5.00 MM ( 0.1949 to 0.1970 Inch )
Bottom Oil Piston Ring Thickness ( Series 2 )  3.95 to 4.00 MM ( 0.1555 to 0.1575 Inch )

Clearance Between Side of Piston Ring in Piston Ring Groove
Top Piston Ring Side Clearance 0.04-0.08 MM (0.0016 - 0.0031 Inch )
Second Piston Ring Side Clearance 0.04-0.08 MM (0.0016 - 0.0031 Inch )
Thrid Piston Ring Side Clearance 0.04-0.08 MM (0.0016 - 0.0031 Inch )
Bottom Oil Piston Ring Side Clearance 0.02-0.06 MM (0.0008 - 0.0023 Inch )
Top Piston Ring End Gap 0.30 - 0.45 MM  (0.012 - 0.0171 Inch )
Second Piston Ring End Gap 0.30 - 0.45 MM  (0.012 - 0.0171 Inch )
Third Piston Ring End Gap  0.30 - 0.45 MM  (0.012 - 0.0171 Inch )
Bottom Oil Piston Ring End Gap   0.30 - 0.50 MM  (0.012 - 0.0190 Inch )

Clearance Between Crankshaft Main Journal and Crankshaft Main Bearing  0.051-0.102 MM ( 0.0020-0.004 Inch )
Standard Crankshaft Main Journal Diameter  79.90 to 80.00 MM ( 3.1457 to 3.1500 Inch )
0.25MM ( 0.010 ) Crankshaft Main Journal Diameter  79.65 to 79.75 MM ( 3.1357 to 3.1400 Inch )
0.50MM ( 0.020 ) Crankshaft Main Journal Diameter   79.40 to 79.50 MM ( 3.1257 to 3.1300 Inch )
0.75MM ( 0.030 ) Crankshaft Main Journal Diameter   79.15 to 79.25 MM ( 3.1157 to 3.1200 Inch )
1.00MM ( 0.040 ) Crankshaft Main Journal Diameter   78.90 to 79.00 MM ( 3.1057 to 3.1100 Inch )

Clearance Between Crankshaft Connecting Rod Journal and Connecting Rod Bearing 0.031 - 0.082 MM (0.0012 - 0.0032 Inch)
Standard Connecting Rod Journal Diameter 64.94 - 64.96 MM ( 2.5568 - 2.5577 Inch)
0.25MM ( 0.010 )  Connecting Rod Journal Diameter 64.69-64.71 MM ( 2.5468-2.5477 Inch)
0.50MM ( 0.020 )  Connecting Rod Journal Diameter 64.43-64.46 MM ( 2.5370-2.5378 Inch)
0.75MM ( 0.030 ) Connecting Rod Journal Diameter 64.19-.64.21 MM ( 2.5272-2.5280 Inch)
1.00MM ( 0.040 )  Connecting Rod Journal Diameter 63.94-63.96 MM ( 2.5173-2.5177 Inch)
_______________________________________________________________________________________________

Hino H06 H06C H06CT Engine Maintenance Parts :  Injectors, Fan Belts, Fan Blades, Water Pump Belts, Alternator Belts, Temperature Switches, Temperature Sensors, Oil Pressure Switches, Oil Pressure Sensors, Shut-off Solenoids, Thermostats, Fuel Lines, Oil Lines, Gaskets, Seals, Bearings, Bushings, Glow Plugs, Radiator Hoses, Coolant Hoses, Water Coolant Pipe, Water Coolant Hose, Air Intake Pipes, Convoluted Pipe,
Air Intake Hoses, Air Intake Tubes, Air Filter Hose, Intake Air Duct, Air Filter to Intake Air Hose, Exhaust Pipes, Turbocharger Air Hose, Turbocharger Oil Lines, Turbocharger Hardware,

Hino H06 H06C H06CT Cylinder Head Parts: intake valves, exhaust valves, intake valve seats, exhaust valve seats,
Intake valve guides, exhaust valve guides, valve springs, inner valve springs, outer valve springs,
valve stem seals, lower valve spring seat, upper valve spring seat, upper valve spring retainers,
valve keepers, valve locks, injector tubes, injector tube seals, injector tube installation tool, exhaust manifold studs, exhaust manifold nuts, exhaust manifold spacers, intake manifold studs, intake manifold bolts, soft plugs, threaded plugs, head gasket, valve cover gasket, intake manifold gaskets, exhaust manifold gasket, head bolts, rocker stand bolts, injector bolts, injector seals, thermostat housing, thermostat housing gasket, glow plugs, glow plug connectors, push rod guide pipe, engine breather ventilator assembly,

Hino H06 H06C H06CT Main Parts: pistons, piston rings, piston pins, piston pin retainers, cylinder liners,
connecting rods, piston pin bushings, big end connecting rod bearing,
connecting rod bolts, connecting rod nuts, crankshafts, crankshaft bearings, crankshaft thrust washers,
crankshaft bolts, crankshaft nuts, crankshaft gears, front crankshaft seal, rear crankshaft seal,
crankshaft sleeves, flywheel bolts, engine mounts, engine mount bolts, engine support,
rubber engine mounts, engine support bolts, engine support nut,

Hino H06 H06C H06CT Crankcase parts: oil sprayer jet, oil sprayer jet valve bolts, crankcase studs, crankcase nuts, crankcase bolts, crankcase gaskets, oil pan gaskets, crankcase seals, crankcase orings, soft plugs, threaded plugs, dowel pins, cam end plug, cam end plug seal, cylinder liners, camshaft bushings, oil relief pump valve, push rod cover, push rod cover gaskets, water gallery cover, water gallery cover gasket, oil line banjo bolts, oil line sealing washers, main cap bolts, driveshaft repair bearing,

Hino H06 H06C H06CT Front Engine Parts: front timing gear cover, front timing gear cover gasket, front timing gear cover bolts, front timing plate, front timing plate gasket, front timing plate bolts, front crankshaft seal, front crankshaft seal retainers, front crankshaft seal retainer gaskets, front cover seal sub assembly, engine speed sensor, crankshaft damper, crankshaft damper bolts, harmonic balancer, harmonic balancer bolts, front crankshaft pulley, front crankshaft pulley bolts, front crankshaft timing gear, front crankshaft slinger, front crankshaft sleeve,

Hino H06 H06C H06CT Rear Engine Parts: flywheel, flywheel ring gear, flywheel bolts, starter ring gear, flywheel housing, flywheel housing gaskets, flywheel housing seals, flywheel housing bolts, flywheel housing studs, flywheel housing nuts, rear crankshaft seals, rear crankshaft seal retainer, rear crankshaft seal retainer seals, rear crankshaft seal retainer gaskets, rear crankshaft seal retainer bolts, rear crankshaft sleeve, rear crankshaft slinger,

Hino H06 H06C H06CT Timing Parts: crankshaft gear, camshaft gear, idler gear, idler gear bushings, idler gear shaft, idler gear thrust plates, idler gear bolts, injection pump drive gear, injection pump drive gear shaft, injection pump drive gear bearings, injection pump drive gear seals, camshaft, camshaft nut, camshaft thrust plate, lifters / tappets, push rods, intake rocker arms, intake rocker arm bushings, intake rocker arm adjusting screw, lock nut, exhaust rocker arms, exhaust rocker arm bushings, exhaust rocker arm adjusting screw, lock nuts, rocker shaft stand, rocker shaft stand bolts, rocker shaft, rocker shaft spring, rocker shaft spring retainers, rocker shaft spring washers, valve adjusting screws, valve adjusting screw lock nuts,

Hino H06 H06C H06CT Intake Parts: intake manifold, intake manifold gaskets, intake manifold studs, intake manifold nuts, intake manifold bolts, intake elbow housing, intake elbow housing gaskets, intake housing bolts, intake air hose, intake air boot, intake air tube, intake air pipe, intercooler gaskets, intercooler seals, aftercooler gaskets, aftercooler seals,
intake housing, intake housing gaskets, intake housing bolts, intercooler parts air to air, intercooler parts air to water, aftercooler parts air to air, aftercooler parts water to air, convoluted hose, air filter hose, air filter to intake air hose, intake air duct,

Hino H06 H06C H06CT Exhaust Parts: exhaust manifold, exhaust manifold gaskets, exhaust manifold studs, exhaust manifold nuts, exhaust manifold bolts, exhaust manifold spacers, exhaust manifold hard sealing rings, exhaust flange, exhaust flange bolts, exhaust flange gaskets,

Hino H06 H06C H06CT Turbocharger parts: turbocharger gaskets, turbocharger bolts, turbocharger studs, turbocharger spacers, turbocharger nuts, turbocharger oil lines, turbocharger oil line gaskets, turbocharger oil line seals, turbocharger connector housing, turbocharger connector housing gaskets, turbocharger connector housing studs, wastegate valve, turbocharger intake housing, turbocharger intake housing seals, turbocharger exhaust housing, turbocharger exhaust housing seals, turbocharger shaft, turbocharger rotor, turbocharger turbine, turbocharger seal rings, turbocharger impeller, turbocharger bearings, turbocharger seals, turbocharger thrust plate, turbocharger back plate, turbocharger rebuild kits,

Hino H06 H06C H06CT Oil Lubricating Parts: oil pump, oil pump drive gear, oil pump seals, oil pump gaskets, oil pump bolts, oil sump tube, oil pickup tube screen, oil cooler element, oil cooler seals, oil cooler bolts, oil cooler gaskets, oil cooler orings, oil pipe, oil pipe seals, oil cooler case, oil cooler housing, oil filter housing, oil filter housing seals, oil filter housing bolts, oil filter safety valve, oil valve springs, oil cooler pipe, oil cooler pipe seals, oil cooler pipe bolts, banjo bolts, sealing washers, oil lines, oil manifold, oil manifold seals, oil manifold gaskets, oil manifold bolts, oil relief valve, oil relief valve springs, oil relief valve seals, oil relief valve cap, oil plug, oil plug seals, oil pressure safety valve, oil pressure switch, oil pressure sensor, oil plug switch,

Hino H06 H06C H06CT Cooling Parts: water pump, water pump rebuild kit, water pump seal, water pump bearings, cooling fan, fan blades, fan hub, fan pulley, fan bolts, water pump pulley, fan drive pulley, fan drive shaft, belt tensioner, belt tensioner pulley, belt tensioner bearings, belt tensioner shaft, belt tensioner bracket, water pump gaskets, water pump bolts, water lines, water pump idler pulley, water pump idler pulley bearings, thermostat housing, thermostat housing gaskets, thermostat, thermostat seals, thermostat gasket, radiator hoses, coolant hoses, water coolant pipe, water coolant hose, water pipe fittings, water manifold, water pump housing, water temperature sender, water temperature sensor, water temperature switch,

Hino H06 H06C H06CT Fuel Parts: fuel filter housing, fuel filter housing seals, fuel lines, banjo bolts, sealing washers, fuel lines,

Hino H06 H06C H06CT Fuel Injection Parts: injector lines, injector line seals, fuel lines, fuel line seals, banjo bolts, fuel line sealing washers, fuel return line, fuel return line sealing washers, fuel return line bolts,

Hino H06 H06C H06CT Injector Parts: complete injectors, injector bolts, injector seals, injector gaskets, injector packing ring, nozzle assembly, nozzle holder assembly, nozzle and holder set, fuel return line bolts, fuel injector sealing washers, injector washers, injector nozzles, injector springs, injector nut – nozzle retainer cap, injector nozzle holder adjusting screw, nozzle holder pressure pin, inlet connector, inlet connecting gasket, nozzle retaining nut,

Hino H06 H06C H06CT Injection Pump Drive Parts: coupling assembly, fuel injection pump drive coupler, driver coupler bolts, drive coupler flange, drive coupler plates, injection pump automatic advance, auto timer assembly, injection pump drive gear, injection pump drive shaft, Injection pump drive bearings,


Hino H06 H06C H06CT Injection Pump Parts: injection pump rebuild kit, injection pump housing, injection pump caps, injection pump gear,  injection pump drive shaft, injection pump drive gear, injection pump drive bearings, injection pump gaskets, injection pump seals, injection pump bearings, injection pump fittings, injection pump plunger, injection pump barrel, injection pump delivery valves, injection pump shims, injection pump tappets, injection pump control rack, injection pump control sleeve, injection pump banjo bolts, injection pump sealing washers, injection pump bleeding screws, injection pump bearing plate, injection pump slotted washer spring retainer, governor housing, governor springs, governor tensioning levers, governor control levers, governor lever shaft,  governor shims, governor seals, governor flyweight assembly, governor cam plate, governor adjusting screws, control linkage, fuel shutoff solenoid, fuel supply pump, fuel lift pump, hand primer pump, oil feed pipe, oil feed pipe seals, banjo bolts,

Hino H06 H06C H06CT Air compressor parts: air compressor piston, air compressor crankshaft, air compressor piston rings, connecting rods, air compressor rebuild kits, air compressor valves, air compressor bearings, air compressor gaskets, air compressor seals, air lines, oil lines, coolant lines, air compressor drive gear,

Hino H06 H06C H06CT Electrical parts: fuel shutoff solenoid, oil pressure switch, oil pressure sensor, oil pressure sender, oil level sensor,  temperature switch, temperature sensor, temperature sender, rpm sensor, revolution sensor,  engine speed sensor, timing sensor, rack position sensor, boost pressure sensor, glow plugs, glow plug connectors, air intake relay, glow plug solenoid, glow plug connector wire, intake air heater relay,
engine stopper, engine stopper relay, level switch, pressure switch, thermo switch,
reserve coolant tank level switch, fuel tank level switch,

This is a partial list, if your parts are not listed please contact us
.
.
